History of Honda’s RFVC Singles
Hobbies and InterestsClassic Motorcycles
In 1983, Honda set out to solve a long-standing challenge with large-capacity four-stroke single-cylinder engines: how to get high power and broad torque out of a big single cylinder without resorting to massive, inefficient combustion chambers.
The result was the RFVC design, first introduced on the 1983 XR500R off-road motorcycle. It was a massive success in desert racing (like the Baja 1000) and dual-sport applications, leading Honda to expand the technology across an entire generation of off-road, road-going, and dual-sport singles:
Off-Road / Enduro: XR250R, XR350R, XR500R, XR600R.
Road & Cafe Racers: GB500 TT, XBR500.
Dual-Sport / Adventure: XL350R, XL600R, Transalp precursors, and the long-running XR650L.

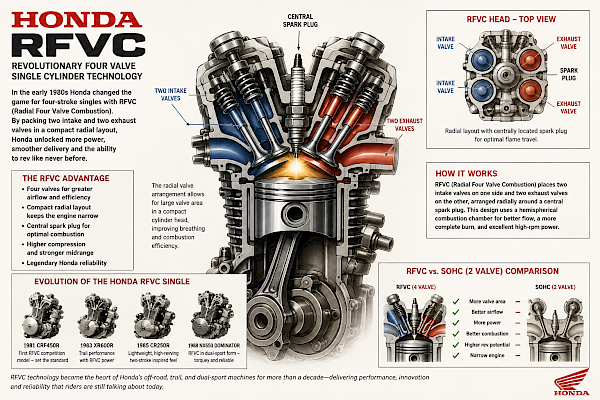

Engineering Analysis: How the RFVC Head Works
In a standard four-valve engine, the intake and exhaust valves sit parallel or at flat angles to each other. Honda’s RFVC design arranged the four valves radiating outward from the center of a hemispherical combustion chamber like the spokes of an umbrella.
[ Spark Plug ] / || \ Intake / || \ Exhaust Valve / || \ Valve / || \ ( ===== Hemispherical Vault ===== ) | [ Piston ]
Key Technical Innovations & Advantages
Larger Valve Diameter & Maximum Flow: By angling the valves radially outward, engineers could fit significantly larger valves into a smaller diameter cylinder bore. This dramatically increased gas flow into and out of the cylinder.
Centralized Spark Plug Placement: Placing the spark plug directly in the center of a hemispherical chamber meant the flame front propagated evenly across the piston crown. This virtually eliminated uneven burning, detonation, and hot spots.
Sub-Rocker Arm Valvetrain: To actuate four radial valves using a single overhead camshaft (SOHC), Honda developed a complex sub-rocker system. The cam lobes pushed primary rocker arms, which pushed angled sub-rockers to open the valves at their radial trajectories.
Twin Exhaust Ports: RFVC engines typically fed into twin exhaust headers. Even though it was a single cylinder, having two distinct exhaust pipes helped pull exhaust gases out faster while creating the iconic dual-pipe thumper look.
Technical Summary
| Feature | Design Implementation | Performance Benefit |
|---|---|---|
| Valve Layout | 4 Valves, Radial Orientation | Maximizes valve size and improves volumetric efficiency. |
| Combustion Chamber | Pent-roof / Hemispherical Shape | Exceptional torque spread across low and mid RPMs. |
| Cam Mechanism | SOHC with secondary offset rockers | Keeps cylinder head height compact for tight chassis fitment. |
| Lubrication System | Dry Sump / Quasi-Dry Sump (oil in frame) | Keeps engine temperatures down and prevents oil starvation on extreme angles. |
The Legacy Today
The RFVC engine is regarded as one of the most durable and legendary air-cooled single-cylinder designs in motorcycle history. Its longevity is best demonstrated by the Honda XR650L—a dual-sport model that used the classic 644cc RFVC engine virtually unchanged for decades.
Understanding the Naming Distinction: RFVC vs. RVF
It is easy to mix up Honda’s acronyms from the 1980s and 1990s!
Honda RVF: Stands for Racing V-Four (e.g., RVF750 RC45 and RVF400 NC35), which were strictly V4-cylinder race and homologation sports bikes.
Honda RFVC: Stands for Radial Four Valve Combustion Chamber. This is Honda’s iconic family of single-cylinder ("thumper") engines introduced in the early 1980s.
If you are looking for the single-cylinder engines, you are referring to the Honda RFVC singles.
