Touch and Go: How Touch Screen Technology Works
Automotive TechnologyTechnologyDisplay
Touch screens have seamlessly integrated into nearly every aspect of modern life, from smartphones and tablets to ATMs, self-checkout kiosks, and car dashboards. While tapping or swiping across a glass panel feels effortless, the underlying engineering relies on sophisticated physics and electronics to translate physical touch into digital actions.
The Dominant Technologies Behind Touch Screens
While there are several ways a screen can register touch, two primary technologies account for the vast majority of devices on the market today: Capacitive and Resistive.

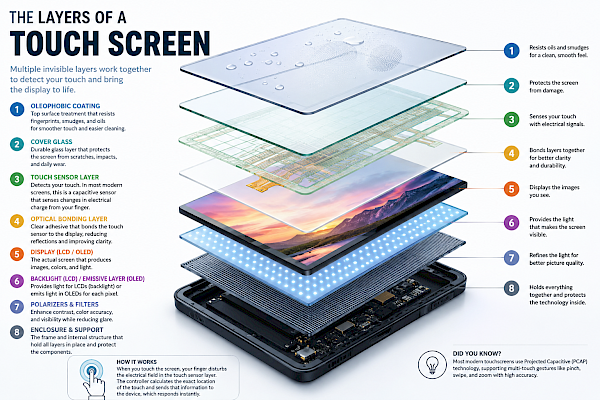

Capacitive (Human Electrical Charge) Resistive (Physical Pressure) [ Glass Cover Plate ] [ Flexible Top Layer ] [ Conductive Layer (ITO) ] [ Conductive Layer ] [ Glass Substrate ] [ Micro Spacer Dots ] [ Conductive Layer ] [ Rigid Substrate Layer ]
1. Capacitive Touch Screens: The Smartphone Standard
Found in virtually all modern smartphones, tablets, and smartwatches, capacitive touch screens rely on the electrical properties of the human body rather than physical pressure.
How It Works
The Layer Setup: The screen consists of an insulating glass panel coated with a transparent, electrically conductive layer—usually made of Indium Tin Oxide (ITO).
The Electrical Field: A tiny electrical charge is applied across the conductive layer, creating a uniform electrostatic field.
The Human Connection: Human skin is an electrical conductor. When your finger touches the glass, it absorbs a tiny amount of electrical charge at the exact point of contact.
Calculation: Sensors placed at the corners or edges of the screen measure the change in capacitance across the grid to pinpoint the precise X and Y coordinates of your finger.
Key Types of Capacitive Screens
Surface Capacitive: Uses sensors at the corners; limited to single-touch input (common in older interactive kiosks).
Projected Capacitive Touch (PCT): Uses a grid pattern of micro-wires; enables multi-touch gestures like pinching-to-zoom or multi-finger swiping.
Why winter gloves don't work: Standard fabric or leather gloves act as electrical insulators, preventing your body’s charge from reaching the conductive layer. Specialized "touchscreen gloves" weave conductive metallic threads into the fingertips to bridge this gap.
2. Resistive Touch Screens: The Pressure-Sensitive Workhorse
Often found on grocery store card readers, older GPS units, industrial equipment, and ATMs, resistive touch screens respond to physical force or pressure.
How It Works
The Layer Setup: Resistive screens consist of two flexible, transparent layers separated by a microscopic gap filled with tiny "spacer dots." Both inner faces are coated with conductive ITO material.
Contact Point: When you press down on the outer screen—using a finger, fingernail, gloved hand, or stylus—the outer flexible layer bends inward until it physically touches the bottom layer.
Voltage Change: The contact connects the two electrical circuits, causing a change in voltage at the point of pressure. Microcontrollers read this voltage shift to determine the exact coordinates.
Comparing Capacitive vs. Resistive Technologies
| Feature | Capacitive Touch Screens | Resistive Touch Screens |
|---|---|---|
| Primary Input | Human skin or conductive stylus | Any object that applies pressure (stylus, glove, nail) |
| Multi-Touch Support | Excellent (pinch-to-zoom, multi-finger gestures) | Poor / Mostly single-touch only |
| Clarity & Visibility | Superior clarity; sharp glass finish | Slightly lower clarity due to multiple flexible layers |
| Durability | Highly durable glass; scratch-resistant | Prone to surface scratches over time |
| Cost & Production | Higher manufacturing cost | Low-cost and simple to produce |
| Water/Contaminant Resistance | Water drops can register as false touches | Immune to surface water, dirt, or dust interference |
Other Niche Touch Screen Technologies
While capacitive and resistive screens dominate, other specialized systems exist for specific environments:
Infrared (IR) Touch: Emits a grid of invisible infrared light beams just above the surface of the display. When an object interrupts the light beam grid, the sensors register the location. Often used in large interactive whiteboards and digital signage.
Surface Acoustic Wave (SAW): Passes ultrasonic waves across the screen surface. Touching the glass absorbs a portion of the wave, allowing sensors to locate the point of contact. Provides pristine image clarity but is vulnerable to dust and liquids.
